1800×1500 Portable Jaw Crusher Manufacturers 630-1300t/h

Quick Details

Portable Jaw Crusher is suitable for primary and secondary crusher for material with compression strength less than 320MPA. Jaw Crusher is widely used in mining, metallurgy, construction, highway, railroad, and water conservancy, etc.

Working Principle

When the Portable Jaw Crusher works, the electrical motor drives the V-belt to make the swing jaw move following the specific track by the eccentric shaft. After the materials enter the crushing chamber, they are crushed between the two jaw plates by impacting, bending, and striking, and then discharged from the discharge opening.

Parameters

Features

1. This new technology has the features of excellent motion characteristics, a special chamber design that saves more than 10% energy consumption, and more than 15% bigger throughput.
2. The unique crushing chamber design makes the availability of jaw plates much higher. The jaw plate can be switched four times which achieves evenly attrition. This advances material availability and prolongs service life.
3. The teeth on the jaw plate in the crushing chamber face to face (swing jaw plate and fixed jaw plate), which is good for crushing hard materials.
4. The structure design of adjustable transmission angle makes higher capacity in the same discharge outlet.
5. Fixed jaw plate and swing jaw plate can be changed for each other. This design will save the user’s spare consumption and the assembly is more convenient.
6. The hydraulic adjustment of the double-jack for the discharge outlet is convenient and labor-saving.
7. The swing jaw and main frame can be disassembled easily which is convenient for transportation.

Application

Portable Jaw Crusher is widely used in mining, building materials, chemical industry, metallurgy and so on.

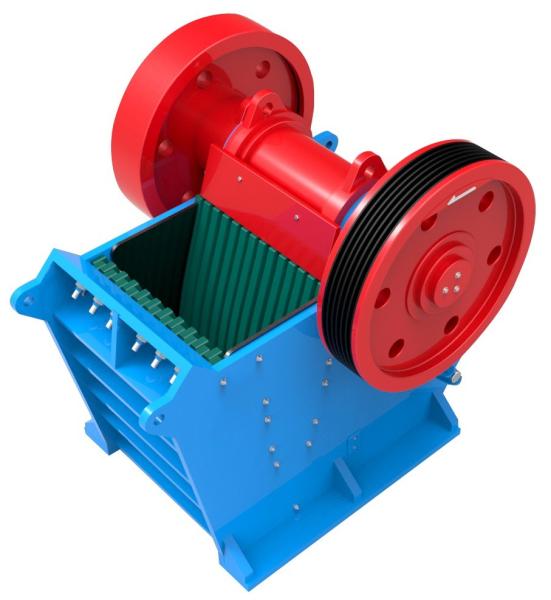

1800×1500 Portable Jaw Crusher Manufacturers 630-1300t/h Images
